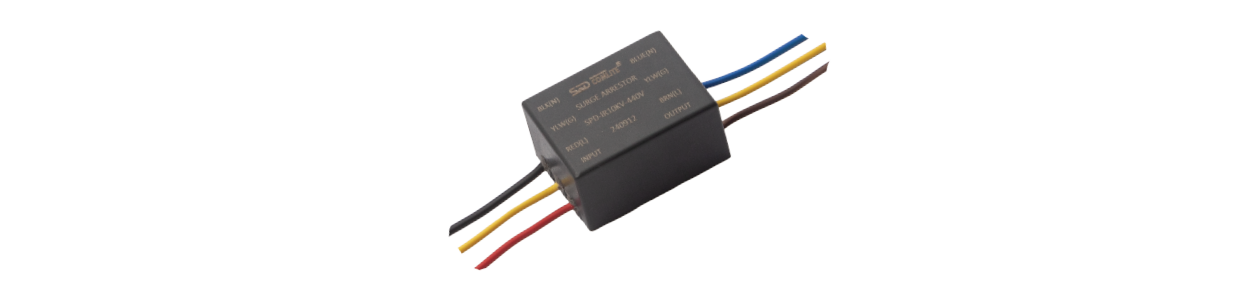

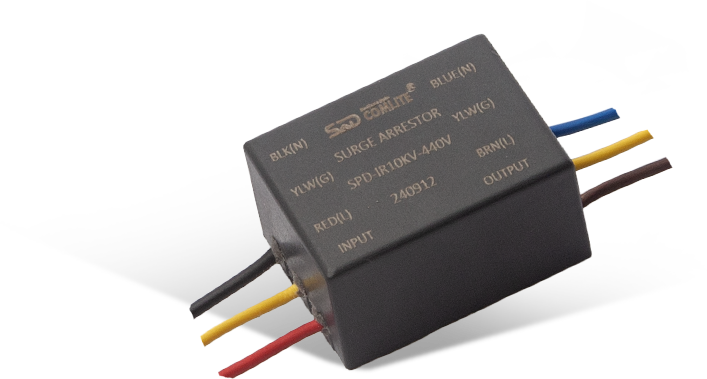

Surge Protection Device(SPD)

Product Features

Input Voltage

240Vac

Input Operating Voltage

120Vac - 300Vac

SPD Compatibility

10KV

THD

< 10%

Input Power Factor

> 0.95

Efficiency

> 85%

Output Current Regulation

±5%

Operating Test Range

160V - 280V

Operating Temperature Range

-10*C to 70*C

Potted Driver

Yes

Semi- Aluminium

Housing

Certification

CRS (IS 15885, PART 2/SEC 13): 2012

Protection

CLASS

440V Test

Single

Phase

4 Hrs

415V Test

Double

Phase

8 Hrs

Surge protection

6KV

Low Voltage Protection

Cut off < 110V | Restart > 115V

Over Voltage Protection

Cut off > 310Vac & Recovery < 290Vac

Protected

from Short Circuit and Open Circuit

Thermal Protection

Thermal fold back at Tc 85*C

Isolation (Input - Output)

1.75KV

Product Specifications

		DATA SHEET
Sr.No	SURGE VOLTAGE	10KV	20KV
01	SURGE CURRENT	5KA	10KA
02	440V - 10hrs	440V	440V
03	IP	IP66	IP66

Constant Voltage Drivers

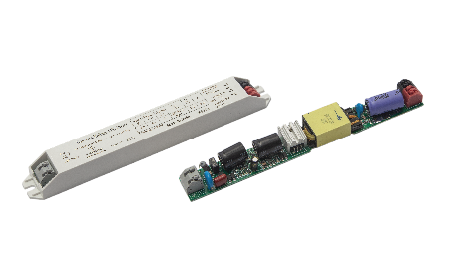

Constant Voltage Driver - IP20

(With 3 Year Warranty)
Available in 12W, 24W & 60W

Know More Enquire Now

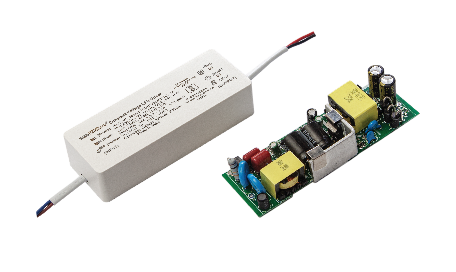

Constant Voltage Driver - IP67
